Turnkey EPC • High-Pressure Boilers • Waste-to-Energy

Decarbonizing Energy With Advanced Biomass & Waste Power

Turnkey biomass cogeneration, independent power plants (IPPs), and municipal/industrial waste-to-energy facilities, supported by captive heavy manufacturing works in India.

800+ MWe

Turnkey Power Installed

Utility & Industrial Cogen
400+ Units

Operating Boilers

(including Lipi Boilers)
200 TPH

Maximum Capacity

Single Boiler Output
125 ata

Steam Profile @ 545°C

High-Pressure Systems
ASME "S" STAMP (POWER BOILERS)
ASME "U" STAMP (PRESSURE VESSELS)
NATIONAL BOARD NBIC "R" STAMP
IBR SPECIAL CLASS CERTIFIED
100% MTR MATERIAL TRACEABILITY
Integrated Delivery Model

Five Decades of Engineering Authority

Combining thermodynamic process design, captive heavy fabrication, civil-mechanical erection, and plant operations to guarantee generation output and lifecycle efficiency.

Turnkey EPC for IPPs & Cogen

Complete balance-of-plant execution for Independent Power Producers (IPPs) and industrial cogeneration facilities. Delivering fuel logistics, combustors, turbine-generators, and high-voltage grid export.

  • Single-point commercial EPC responsibility
  • Guaranteed station heat rate & electrical output
  • Civil, structural, mechanical & switchyard integration

Waste-to-Energy & Biomass Boilers

Custom-engineered high-pressure watertube boilers built for refuse-derived fuels (RDF), municipal solid waste (MSW), palm biomass (EFB), distillery spent wash, and agricultural residues.

  • Corrosion-resistant stoker geometries
  • Atmospheric & circulating fluidized beds (AFBC / CFBC)
  • Zero Liquid Discharge (ZLD) slop incineration boilers

Plant Services & Lifecycle O&M

Maximizing long-term asset profitability through comprehensive operations and maintenance (O&M), efficiency debottlenecking, coal-to-biomass revamps, and fast-track spare part turnaround.

  • Guaranteed plant availability factors >95%
  • Coal-to-biomass fuel switch retrofits
  • Rapid emergency outage re-tubing and repairs
Engineering Portfolio

Renewable Power Plants & Clean Steam Systems

Engineered for high-availability power generation for independent power utilities and steam-intensive industrial plants.

Utility & Merchant Power

Independent Power Plants (IPPs) & Cogen

Turnkey grid-connected biomass power plants and industrial cogeneration systems. Tailored for continuous power supply with automated fuel handling, high-temperature superheaters, and automated turbine controls.

Sustainable Urban & Industrial Waste

Waste-to-Energy Plants (WtE / RDF)

Turnkey waste-to-energy facilities engineered for Refuse-Derived Fuel (RDF) and municipal solid waste. Depending on fuel composition and site requirements, we integrate proven grate technologies, vertical multi-pass boilers, and project-specific flue gas treatment (FGT) systems.

Circular Economy & ZLD

Slop & Spent Wash Fired Boilers

Purpose-built incineration steam generators for grain and molasses distilleries. Enables environmental Zero Liquid Discharge (ZLD) compliance while generating green power and reusable potash-rich ash.

Industrial Process

Fluidized Bed & Grate Boilers

Versatile atmospheric fluidized bed combustion (AFBC) and continuous traveling grate boilers delivering dependable process steam with high thermal efficiency, multi-fuel flexibility, and compliance with local stack emission norms.

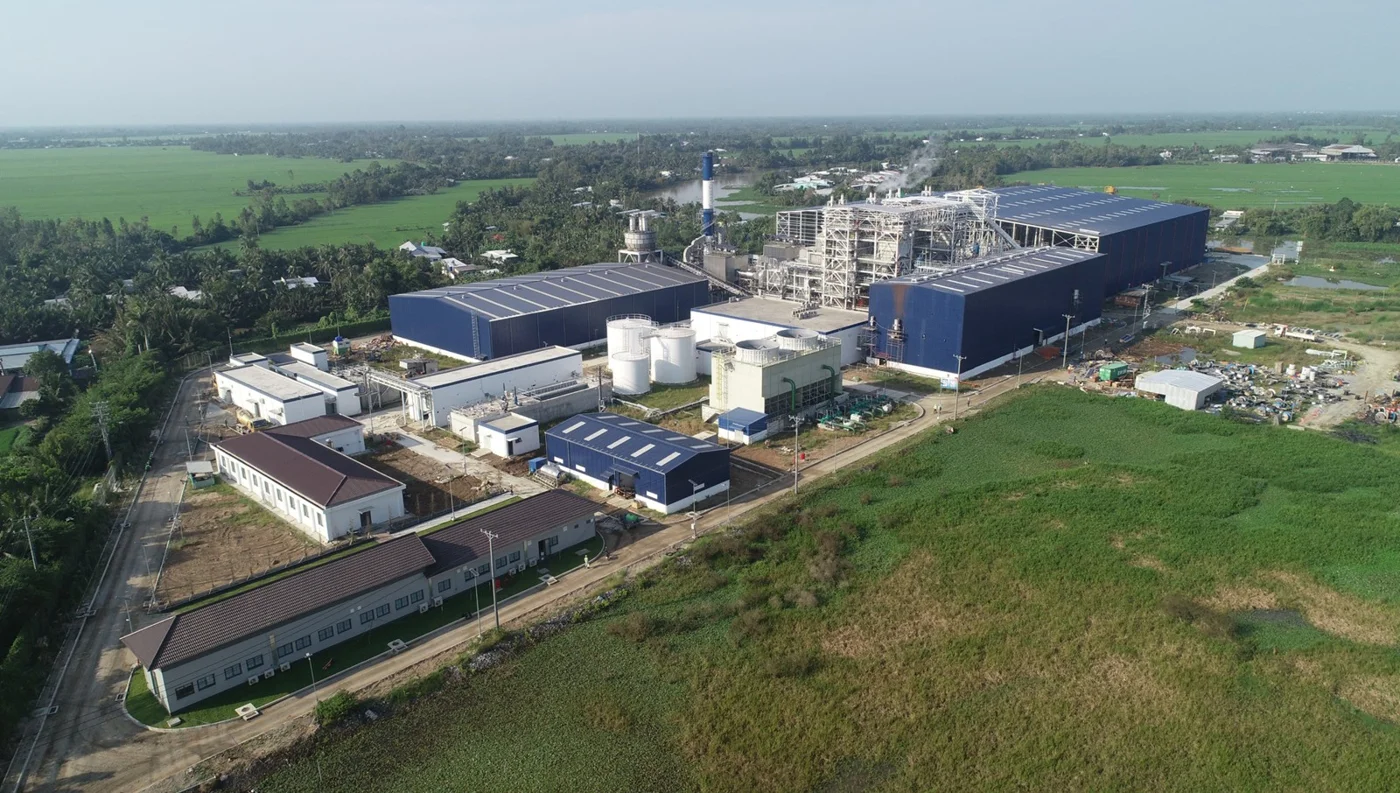

Aerial view of 20 MW Hau Giang Biomass Power Plant in Vietnam
International Utility Reference
Turnkey Biomass IPP

20 MW Hau Giang Power Plant, Vietnam

Turnkey execution of a 20 MW baseload biomass power plant. Features dual traveling grate boilers engineered specifically to burn rice husk and agricultural sorghum residues across continuous commercial operation.

2 × 10 MW Gross Electrical Generation
2 × 42 TPH 67 ata / 490°C Steam Output
Rice Husk & Sorghum 100% Agricultural Feedstock
Utility Export National Grid Interconnection

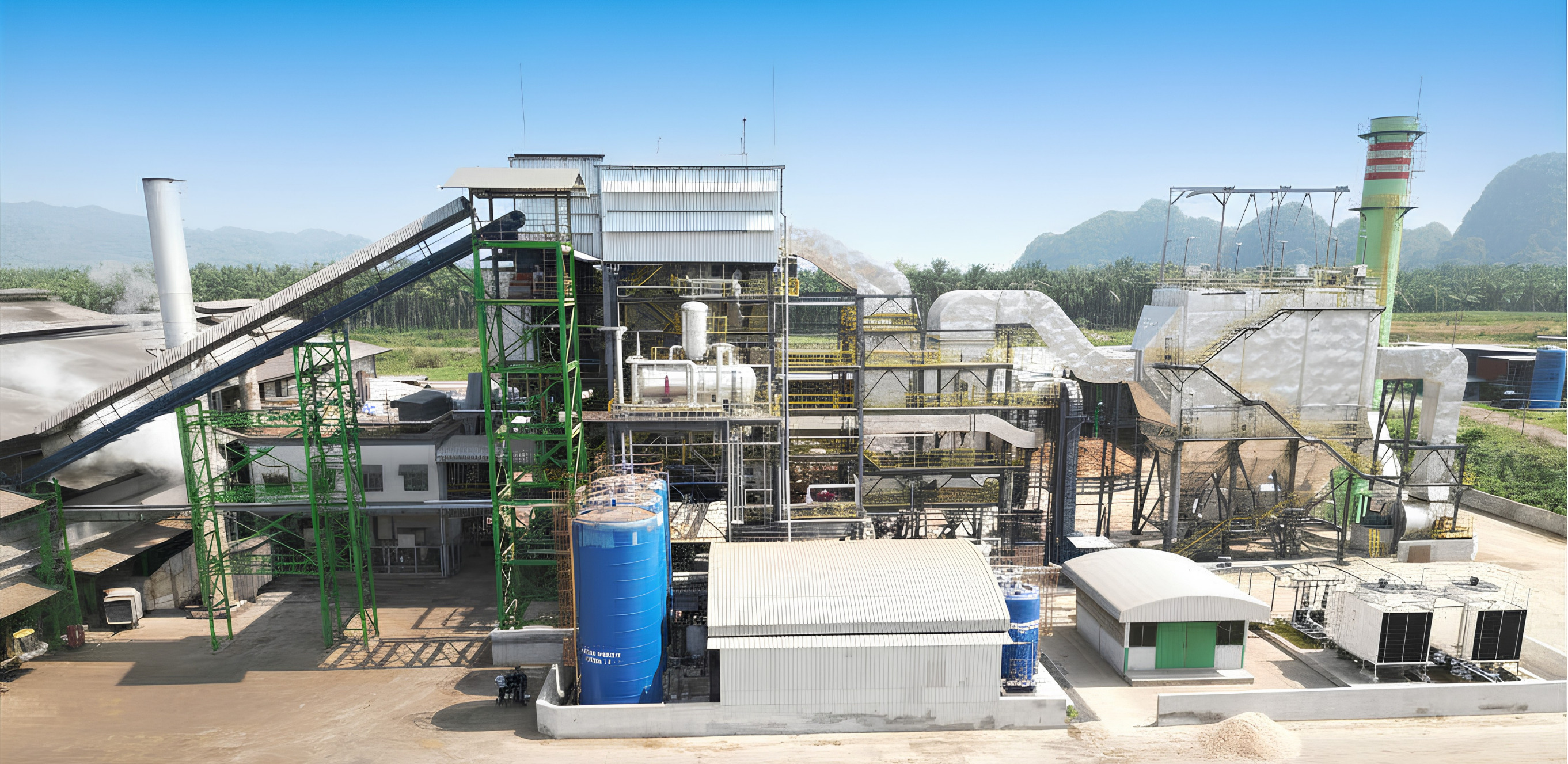

Uttamenergy Commercial Palm Biomass Boiler Island Installation
100% Palm Biomass Reference
Challenging Fuel Engineering

Clean Power on 100% Palm EFB

Empty Fruit Bunch (EFB) is notoriously difficult to burn due to high moisture (exceeding 55%), volatile alkali salts, and chlorine-induced corrosion. Uttamenergy designed, manufactured, and commissioned utility boiler islands that fire unadulterated palm residues continuously.

4.0 MWe / 50 TPH 38 barg / 380°C Continuous Output
Reciprocating Servo Grate In-House Multi-Step Motion
Anti-Clinker Design Staged Air Prevents Slagging
Alloy Shielding Neutralizes Chlorine Attack
Fuel Capabilities

Different Fuels. Purpose-Built Power.

Select a fuel family below to inspect the matched combustion technology, technical solution, and operating reference.

Agricultural Residues (Bagasse, Husk, Paddy Straw)

Fibrous agricultural residues require balanced fuel distribution, controlled overfire air staging, and conservative furnace heat-release designs to prevent bed clinkering and low-temperature ash agglomeration.

Recommended Combustion System: Continuous Traveling Grate Stoker or Atmospheric Fluidized Bed (AFBC)
Benchmark Project Reference:
Hau Giang Biomass Power Plant

20 MW (2 × 10 MW) • 2 × 42 TPH @ 67 ata / 490°C • Vietnam

View Reference Details →
In-House Manufacturing Works • India

Heavy Fabrication Bays & Tooling Capacity

Our captive heavy manufacturing complex in Aurangabad, India eliminates dependency on third-party fabricators. Equipped with heavy hydraulic plate rolls, dual automated membrane wall welding lines, and multi-spindle CNC drilling gantries.

Uttamenergy Heavy Manufacturing Complex, Aurangabad
ASME "S" STAMP Power Boilers (Section I)
ASME "U" STAMP Pressure Vessels (Sec VIII Div 1)
NBIC "R" STAMP Metallic Repairs & Alterations
IBR APPROVED Indian Boiler Regulations Certified
Heavy Hydraulic Plate Rolling Cell
Heavy Plate Forming

Hydraulic Plate Rolling Cell

Multi-roll hydraulic bending cells rolling thick-wall carbon and alloy steel plate for boiler steam drums, mud drums, and heavy pressure shells.

  • Plate Thickness: Up to 150 mm (5.9 in.)
  • Vessel Diameters: Large-Bore Heavy Cylindrical Shells
Heavy Multi-Spindle CNC Drilling Line
Precision CNC Machining

CNC Multi-Spindle Drum & Pipe Drilling

High-precision gantry CNC multi-spindle drilling lines machining tube stubs, ligament patterns, and nozzle holes into heavy drum shells and high-alloy headers.

  • Machine System: Heavy-Duty CNC Gantry Line
  • Tolerance: ±0.5 mm Ligament Pitch Accuracy
Automated Multi-Torch Membrane Wall Welding Line
Automated Panel Fabrication

Dual Automated Membrane Wall Lines

Twin high-output automated multi-torch submerged arc welding (SAW) lines producing 100% gastight watertube panels with uniform heat input.

  • Capacity / Setup: 2 Dedicated Continuous SAW Lines
  • Panel Scope: Continuous Up to 50 ft Lengths
Submerged Arc Seam Welding Station
Welding Automation

Submerged Arc Seam Manipulators

Heavy-duty column-and-boom SAW manipulators paired with synchronized turning rotators for full-penetration longitudinal and circumferential shell welds.

  • System: Heavy Column-and-Boom Manipulator
  • Testing: 100% Radiographic (RT) Verification
Serpentine Superheater Coils
Cold Forming

Serpentine Bundles & Superheaters

Tight-radius cold-bent serpentine bundles for economizers, superheaters, and convective banks. Stacked in heavy transport frames for jobsite delivery.

  • Bending Method: CNC Mandrel Cold Bending
  • Radius: Down to 1.5D Centerline
High-Bay Overhead Crane Infrastructure
Material Handling

Heavy Overhead Crane High-Bays

Full-span heavy overhead crane networks across active production bays, enabling safe handling of heavy-wall shells, steam drums, and skids.

  • Crane Fleet: Full-Span Heavy Overhead Crane Fleet
  • Bay Layout: Segregated Assembly & NDE Bays

In-House Manufacturing Capabilities

Equipment / Process Technical Work Envelope Typical Deliverables
Heavy Plate Rolling Hydraulic pinch rolls; SA-516 Gr 70 up to 150 mm (5.9 in.) thk; Large-bore shells Boiler steam drums, mud drums, pressure vessels & autoclaves
Automated Membrane Wall Welding (2 Lines) Dual multi-torch continuous SAW lines; Panels up to 50 ft L × 10 ft W Furnace waterwalls & gastight membrane panels
Multi-Spindle Header Drilling Heavy-duty CNC multi-spindle drilling gantries; Heavy wall piping & drums Boiler headers, saturated steam manifolds, downcomers
CNC Mandrel Tube Bending Multi-axis booster benders; Tube OD 1.0 in. to 4.0 in.; Radii down to 1.5D Convective banks, superheaters, economizer loops, WtE harps
PWHT & Hydrostatic Testing Calibrated digital PWHT furnace + Hydro test bench up to 5,000 PSIG ASME S & U stamped assemblies, IBR certified pressure parts
Proven Track Record

Over 800 MWe Installed Worldwide

A cumulative record spanning 400+ boiler installations across Southeast Asia, Africa, South America, and India.

Technical Documentation

Request Complete Reference List & Technical Brochure

Receive our complete reference catalog covering utility biomass IPPs, industrial cogeneration plants, waste-to-energy facilities, and distillery ZLD boilers. Sent directly to your work email.

Interactive Engineering Guide

Find Your Recommended Thermal Solution

Input your intended fuel, generation target, and plant requirement to calculate a matched configuration.

Configure Project Parameters

Our applications engineering team evaluates your feedstock properties and operating requirements to configure the optimal boiler and balance-of-plant systems.

MATCHED ENGINEERING SPECIFICATION

High-Pressure Traveling Grate Boiler Island

Continuous automatic ash-discharging stoker boiler paired with multi-tier overfire air for volatile agro-residue combustion.

  • Combustor: Hydro-mechanical Continuous Traveling Grate
  • Thermal Range: Up to 125 ata @ 545°C steam envelope
  • BOP Auxiliaries: Flue-gas bagasse dryer, high-voltage grid switchyard
Apply to Project Inquiry →
Operational Support

Services, Plant Revamps & O&M

Comprehensive engineering services designed to maximize plant uptime, enhance boiler thermal efficiency, and guarantee long-term operational life.

Plant Revamps

Boiler Modernization & R&M

Capacity debottlenecking, superheater metallurgy upgrades, air preheater/economizer additions, and conversion of older coal or fossil-fuel boilers to renewable biomass firing.

Asset Optimization

Performance Audits & RLA Studies

Thermodynamic efficiency assessments, combustion optimization, and Residual Life Assessment (RLA) studies to debottleneck steam generation and extend pressure part lifespans.

Asset Care

Comprehensive O&M Contracts

Full-scope plant operation and maintenance by seasoned engineers, proactive predictive monitoring, water chemistry management, and guaranteed annual generation hours.

Rapid Supply

OEM Spares & Re-Tubing

Direct supply of precision cold-bent boiler tubes, forged fittings, sootblowers, grate bars, and valves manufactured to original equipment standards.

Commercial Applications

Connect with Our Energy Experts

Whether you are evaluating a utility biomass IPP, planning a waste-to-energy plant, requiring palm EFB combustion systems, or sourcing ASME-certified pressure parts, our engineering applications team is ready to assist.
